EX 6 — Vehicles with a minimum quantity

Class: MILP · Links: minimum lot, activation · Script: python/ex06_vehicles.py
Difficulty: ★★☆☆☆ · Time: 30–45 min

Open in Colab

One of the fifteen numerical models, of the production planning family.

EX 6

A company is considering the production of five types of vehicle. It has \(1000\) tonnes of steel and \(2000\) hours of labour. For each type the table gives the steel per unit, the hours per unit, the unit profit and the minimum quantity to produce if the type is chosen:

Type steel hours profit minimum
small car 2 30 200 10
saloon 3 25 250 10
large car 5 40 300 10
van 6 45 550 5
large van 8 55 700 5

The plan of maximum profit is wanted.

Model

Two families of variables are needed: a quantity per type and an indicator per type. With \(s\) types of vehicle, \(k\) resources, profit \(p_j\), consumption \(a_{ij}\), availability \(b_i\), minimum quantity \(q_j\) and maximum producible \(M_j\):

\[ \begin{array}{rrrrrrrrrrr c l} \max & 200x_1 & +250x_2 & +300x_3 & +550x_4 & +700x_5 & & & & & & & \\ \text{subject to} & 2x_1 & +3x_2 & +5x_3 & +6x_4 & +8x_5 & & & & & & \le & 1000\\ & 30x_1 & +25x_2 & +40x_3 & +45x_4 & +55x_5 & & & & & & \le & 2000\\ & x_1 & & & & & -10y_1 & & & & & \ge & 0\\ & & x_2 & & & & & -10y_2 & & & & \ge & 0\\ & & & x_3 & & & & & -10y_3 & & & \ge & 0\\ & & & & x_4 & & & & & -5y_4 & & \ge & 0\\ & & & & & x_5 & & & & & -5y_5 & \ge & 0\\ & x_1 & & & & & -66y_1 & & & & & \le & 0\\ & & x_2 & & & & & -80y_2 & & & & \le & 0\\ & & & x_3 & & & & & -50y_3 & & & \le & 0\\ & & & & x_4 & & & & & -44y_4 & & \le & 0\\ & & & & & x_5 & & & & & -36y_5 & \le & 0\\ & x_1, & x_2, & x_3, & x_4, & x_5 & & & & & & \in & \Z_{\ge 0}\\ & & & & & & y_1, & y_2, & y_3, & y_4, & y_5 & \in & \{0, 1\} \end{array} \]

The two link constraints together make \(x_j\) a semi-integer variable --- the units are whole numbers:

\(y_j\) what the two constraints impose admissible \(x_j\)
\(0\) \(x_j \ge 0\) and \(x_j \le 0\) only \(x_j = 0\)
\(1\) \(x_j \ge q_j\) and \(x_j \le M_j\) \(q_j \le x_j \le M_j\)

Neither is enough on its own: without the second a type could be produced with \(y_j = 0\); without the first the minimum quantity would be vacuous.

On the data of the instance \(s = 5\), \(k = 2\) and the big-Ms are \(M = (66, 80, 50, 44, 36)\), all limited by the hours of labour:

Constructive heuristic: the primal bound

This is a maximisation. The types are scanned by decreasing profit per hour of labour: \(20/3\), \(10\), \(15/2\), \(110/9\) and \(140/11\). Starting from the large van (\(140/11\)), \(36\) of them are produced — the most the hours allow — and \(712\) tonnes of steel are left but only \(20\) hours: no other type reaches its own minimum quantity and the heuristic stops.

\[\mathit{LB} = 25\,200.\]

LP relaxation and dual: the dual bound

\[ \begin{array}{rrrrrrrrrrrrr c l} \min & 1000\pi_1 & +2000\pi_2 & & & & & & & & & & & & \\ \text{subject to} & 2\pi_1 & +30\pi_2 & +\lambda_1 & & & & & +\mu_1 & & & & & \ge & 200\\ & 3\pi_1 & +25\pi_2 & & +\lambda_2 & & & & & +\mu_2 & & & & \ge & 250\\ & 5\pi_1 & +40\pi_2 & & & +\lambda_3 & & & & & +\mu_3 & & & \ge & 300\\ & 6\pi_1 & +45\pi_2 & & & & +\lambda_4 & & & & & +\mu_4 & & \ge & 550\\ & 8\pi_1 & +55\pi_2 & & & & & +\lambda_5 & & & & & +\mu_5 & \ge & 700\\ & & & -10\lambda_1 & & & & & -66\mu_1 & & & & & \ge & 0\\ & & & & -10\lambda_2 & & & & & -80\mu_2 & & & & \ge & 0\\ & & & & & -10\lambda_3 & & & & & -50\mu_3 & & & \ge & 0\\ & & & & & & -5\lambda_4 & & & & & -44\mu_4 & & \ge & 0\\ & & & & & & & -5\lambda_5 & & & & & -36\mu_5 & \ge & 0\\ & \pi_1, & \pi_2 & & & & & & & & & & & \ge & 0\\ & & & \lambda_1, & \lambda_2, & \lambda_3, & \lambda_4, & \lambda_5 & & & & & & \le & 0\\ & & & & & & & & \mu_1, & \mu_2, & \mu_3, & \mu_4, & \mu_5 & \ge & 0 \end{array} \]

A dual solution by hand. Set \(\ell_j = \mu_j = 0\) (the minimum lot is not priced) and price a single resource, at the highest unit price among the types:

\[\bar\pi_{\text{steel}} = \max_j \frac{p_j}{a_{1j}} = 100 \;\Rightarrow\; 1000 \cdot 100 = 100\,000,\]
\[\bar\pi_{\text{hours}} = \max_j \frac{p_j}{a_{2j}} = \frac{140}{11} \;\Rightarrow\; 2000 \cdot \frac{140}{11} = \frac{280\,000}{11} \approx 25\,454.5.\]

The better bound comes from the hours: \(\mathit{UB} = 280\,000/11\).

Optimum and comparison

\(\mathit{LB}\) \(\mathit{UB}\) \(z(\mathit{LP})\) \(z(\mathit{LP}^+)\) \(z(\mathit{MILP})\)
25 200 \(280000/11\) \(280000/11\) \(229000/9\) 25 250

The optimum produces \(9\) vans and \(29\) large vans, using all \(2000\) hours and \(286\) tonnes of steel out of \(1000\). The dual bound is optimal for the relaxation without the bounds, and the heuristic is off by a mere \(0.2\%\).

What the minimum lot costs

Without minimum quantities the optimum would be \(25\,300\): the minimum lot costs \(50\) euros of profit. Doubling the minimum quantities brings it down to \(25\,200\); doubling the hours of labour takes it to \(50\,750\), with the hours still tight.

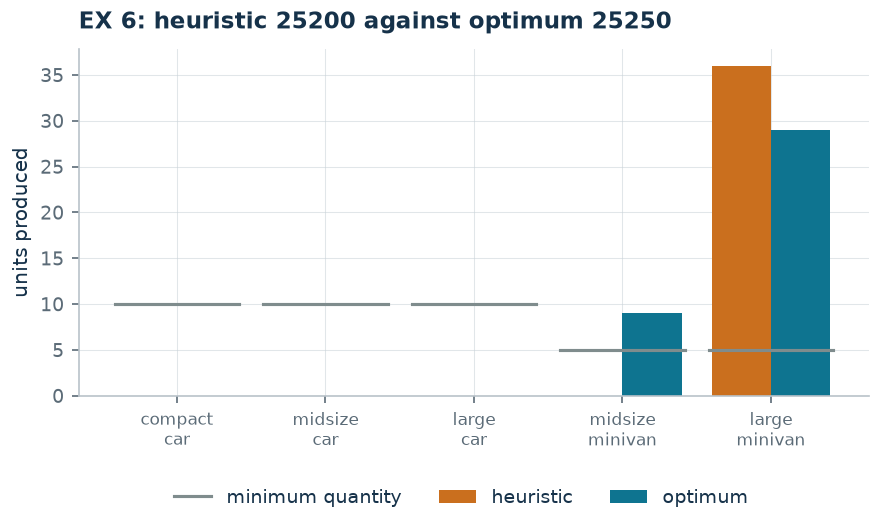

The optimal production

Code

The full script is python/ex06_vehicles.py; the notebook is notebooks/ex06_vehicles.ipynb.

Show the complete script — python/ex06_vehicles.py (178 lines)
"""EX 6 -- Vehicle production with a minimum lot (family 9).

Two resources (steel and labour hours) and five vehicle types, each with a minimum
quantity if it is produced. It is the same structure as problem 9.3 without the
variety bonus: minimum lot (3.3) plus activation (3.1), that is semi-integer
variables.
"""
import gurobipy as gp
import pandas as pd
from gurobipy import GRB

from mip import (ammissibile, due_rilassamenti, frazione, nuovo_modello, registra_bound,
                 risolvi, valuta)
from stile import ARANCIO, GRIGIO, TEAL, intestazione, plt, salva_dati, salva_figura
from esteso import salva_modello

R = range

# ---------- 1. MODEL AND INSTANCE ----------
intestazione("EX 6. Vehicles: two resources and a minimum quantity per type")
NOMI = ["compact car", "midsize car", "large car", "midsize minivan", "large minivan"]
a4 = [[2, 3, 5, 6, 8],            # steel per unit
      [30, 25, 40, 45, 55]]       # labour hours per unit
b4 = [1000, 2000]                 # resources available
RISORSE = ["steel (tons)", "labour hours"]
p4 = [200, 250, 300, 550, 700]    # profit per unit
q4 = [10, 10, 10, 5, 5]           # minimum quantity if the type is produced
ns, nr = len(p4), len(b4)
M4 = [min(b4[i] // a4[i][j] for i in R(nr)) for j in R(ns)]
salva_dati(pd.DataFrame({"type": NOMI, "steel": a4[0], "hours": a4[1], "profit": p4,
                         "minimum": q4, "maximum": M4}), "ex06_dati")
print("  Largest quantity of a single type that can be produced (the natural big-M):")
for j in R(ns):
    print(f"    {NOMI[j]:20s} min({b4[0]}/{a4[0][j]}, {b4[1]}/{a4[1][j]}) = {M4[j]}")


def modello(a, b, p, q, M):
    ns, nr = len(p), len(b)
    m = nuovo_modello("vehicles_num4")
    x = m.addVars(ns, vtype=GRB.INTEGER, name="x")
    y = m.addVars(ns, vtype=GRB.BINARY, name="y")
    m.setObjective(gp.quicksum(p[j] * x[j] for j in R(ns)), GRB.MAXIMIZE)
    m.addConstrs((gp.quicksum(a[i][j] * x[j] for j in R(ns)) <= b[i] for i in R(nr)),
                 name="resource")
    m.addConstrs((x[j] - q[j] * y[j] >= 0 for j in R(ns)), name="minimum_lot")
    m.addConstrs((x[j] - M[j] * y[j] <= 0 for j in R(ns)), name="activate")
    return m, x, y


def duale(a, b, p, q, M):
    """min sum_i b_i pi_i  with pi >= 0, lam <= 0 (minimum lot, written >=) and mu >= 0.

    Columns:  x_j: sum_i a_ij pi_i + lam_j + mu_j >= p_j
              y_j: -q_j lam_j - M_j mu_j >= 0
    """
    ns, nr = len(p), len(b)
    d = nuovo_modello("dual_vehicles_num4")
    pi = d.addVars(nr, name="pi")
    lam = d.addVars(ns, lb=-GRB.INFINITY, ub=0.0, name="lam")
    mu = d.addVars(ns, name="mu")
    d.setObjective(gp.quicksum(b[i] * pi[i] for i in R(nr)), GRB.MINIMIZE)
    d.addConstrs((gp.quicksum(a[i][j] * pi[i] for i in R(nr)) + lam[j] + mu[j] >= p[j]
                  for j in R(ns)), name="rcx")
    d.addConstrs((-q[j] * lam[j] - M[j] * mu[j] >= 0 for j in R(ns)), name="rcy")
    return d


m4, x4, y4 = modello(a4, b4, p4, q4, M4)
salva_modello(m4, "ex06_primale")

# ---------- 2. CONSTRUCTIVE HEURISTIC (LOWER BOUND) ----------
# constructive heuristic on the profit per labour hour (the tightest resource): a type is switched on
# only if its minimum quantity can be reached, then it is pushed to the maximum
def euristica(a, b, p, q):
    ns, nr = len(p), len(b)
    res = list(map(float, b))
    x = [0] * ns
    passi = [f"profit per labour hour: "
             + ", ".join(f"{NOMI[j]} {frazione(p[j] / a[1][j])}" for j in R(ns))]
    for j in sorted(R(ns), key=lambda j: (-p[j] / a[1][j], j)):
        if any(a[i][j] * q[j] > res[i] + 1e-9 for i in R(nr)):
            passi.append(f"{NOMI[j]}: the minimum quantity {q[j]} cannot be reached, skipped")
            continue
        n = min(int(res[i] // a[i][j]) for i in R(nr))
        x[j] = n
        for i in R(nr):
            res[i] -= a[i][j] * n
        passi.append(f"{NOMI[j]}: {n} units are produced (minimum {q[j]}); resources left "
                     + ", ".join(f"{RISORSE[i]} {frazione(res[i])}" for i in R(nr)))
    return x, passi


x_e, passi = euristica(a4, b4, p4, q4)
for k, riga in enumerate(passi, 1):
    print(f"  Step {k}. {riga}")
lb4 = sum(p4[j] * x_e[j] for j in R(ns))
sol_eur = ({f"x[{j}]": x_e[j] for j in R(ns)}
           | {f"y[{j}]": 1 if x_e[j] else 0 for j in R(ns)})
assert ammissibile(m4, sol_eur), sol_eur
print(f"  Heuristic solution: " + ", ".join(f"{x_e[j]} {NOMI[j]}" for j in R(ns) if x_e[j])
      + f"   lb = {frazione(lb4)}")

# ---------- 3. LP RELAXATION AND DUAL (UPPER BOUND) ----------
d4 = duale(a4, b4, p4, q4, M4)
salva_modello(d4, "ex06_duale")
# recipe: lam = mu = 0 (the minimum lot is not priced) and a single resource priced at
# the highest unit price among the vehicles
migliore, mano, scelta = float("inf"), None, None
for i in R(nr):
    prezzo = max(p4[j] / a4[i][j] for j in R(ns))
    prova = {f"pi[{i}]": prezzo}
    val, viol = valuta(d4, prova)
    if viol <= 1e-9 and val < migliore:
        migliore, mano, scelta = val, prova, i
ub4, viol = valuta(d4, mano)
assert viol <= 1e-9, viol
print("  Hand-built dual: lam = mu = 0 and a single resource priced, at the highest unit")
print("  price among the vehicles (so that every constraint a_ij pi_i >= p_j holds):")
for i in R(nr):
    prezzo = max(p4[j] / a4[i][j] for j in R(ns))
    print(f"    {RISORSE[i]:16s} price {frazione(prezzo):>8}  ->  bound "
          f"{frazione(b4[i] * prezzo)}")
print(f"  The better bound comes from: {RISORSE[scelta]}.  ub = {frazione(ub4)}")
zlp4, zlp4r, _ = due_rilassamenti(m4, d4)

# ---------- 4. OPTIMUM OF THE MILP ----------
z4 = risolvi(m4)
print("  Optimal solution: " + ", ".join(f"{int(x4[j].X)} {NOMI[j]}" for j in R(ns)
                                         if x4[j].X > 0.5))
for i in R(nr):
    usato = sum(a4[i][j] * x4[j].X for j in R(ns))
    print(f"    {RISORSE[i]}: {frazione(usato)} out of {b4[i]}")
riga = registra_bound("EX 6 vehicles", ub4, lb4, zlp4, zlp4r, z4, senso="max")
salva_dati(pd.DataFrame([riga]), "ex06_bound")
assert lb4 <= z4 <= zlp4 <= ub4 + 1e-9

# ---------- 5. THE MINIMUM LOT IS A CONSTRAINT, NOT A HELP ----------
intestazione("EX 6. What the minimum lot costs")
m, x, y = modello(a4, b4, p4, [0] * ns, M4)
z_senza = risolvi(m)
print(f"  Without minimum quantities the optimum rises to {frazione(z_senza)} (against "
      f"{frazione(z4)}):")
print(f"  the minimum lot costs {frazione(z_senza - z4)} of profit because it prevents")
print("  producing few units of the most profitable types.")
varianti = {"without minimum quantities": z_senza}
# 4a: minimum quantities doubled
m, x, y = modello(a4, b4, p4, [2 * v for v in q4], M4)
z_a = risolvi(m)
varianti["4a. minimum quantities doubled"] = z_a
print(f"  4a. With the minimum quantities doubled: z = {frazione(z_a)}")
# 4b: labour hours doubled
b_b = [b4[0], 2 * b4[1]]
m, x, y = modello(a4, b_b, p4, q4,
                  [min(b_b[i] // a4[i][j] for i in R(nr)) for j in R(ns)])
z_b = risolvi(m)
varianti["4b. labour hours doubled"] = z_b
uso_b = [sum(a4[i][j] * x[j].X for j in R(ns)) for i in R(nr)]
print(f"  4b. With the labour hours doubled: z = {frazione(z_b)}; resources used "
      + ", ".join(f"{RISORSE[i]} {frazione(uso_b[i])} out of {b_b[i]}" for i in R(nr)))
print("      The hours stay the tight resource and the profit almost exactly doubles.")
salva_dati(pd.DataFrame({"variant": list(varianti), "z": list(varianti.values())}),
           "ex06_varianti")

# ---------- 6. FIGURE ----------
fig, ax = plt.subplots(figsize=(6.8, 3.0))
idx = list(R(ns))
ax.bar([j - 0.2 for j in idx], [x_e[j] for j in idx], 0.4, color=ARANCIO, label="heuristic")
ax.bar([j + 0.2 for j in idx], [x4[j].X for j in idx], 0.4, color=TEAL, label="optimum")
for j in idx:
    ax.plot([j - 0.42, j + 0.42], [q4[j], q4[j]], color=GRIGIO, lw=1.5)
ax.plot([], [], color=GRIGIO, lw=1.5, label="minimum quantity")
ax.set_xticks(idx)
ax.set_xticklabels([n.replace(" ", "\n") for n in NOMI], fontsize=8)
ax.set_ylabel("units produced")
ax.set_title(f"EX 6: heuristic {frazione(lb4)} against optimum {frazione(z4)}")
ax.legend(fontsize=8)
salva_figura(fig, "ex06_produzione")
print("Done.")
