EX 4 — Hub-and-spoke
Class: BIP · Links: covering · Script: python/ex04_hub.py
Difficulty: ★☆☆☆☆ · Time: 20–30 min
One of the fifteen numerical models, of the location and covering family.
EX 4
An airline organises its network with a hub-and-spoke system: a hub serves directly every city within \(1000\) miles. The company operates on eight cities; for each of them, the cities within \(1000\) miles are:
| City | Cities within 1000 miles |
|---|---|
| Atlanta | Atlanta, Chicago, Houston, New York |
| Chicago | Atlanta, Chicago, New York |
| Denver | Denver, Los Angeles |
| Houston | Atlanta, Houston |
| Los Angeles | Denver, Los Angeles, San Francisco |
| New York | Atlanta, Chicago, New York |
| San Francisco | Los Angeles, San Francisco, Seattle |
| Seattle | San Francisco, Seattle |
The minimum number of hubs is wanted, such that every city is within \(1000\) miles of at least one hub.
Model
With \(y_j = 1\) if city \(j\) becomes a hub (\(8\) binaries) and \(S_i\) the set of cities covering city \(i\):
With \(n = 8\) cities and \(m = 8\) candidate hubs, a pure set covering: \(n\) covering constraints, all costs equal to \(1\). The relation "within \(1000\) miles" is symmetric, so \(j \in S_i \iff i \in S_j\): the matrix of the model is symmetric.
The model of the instance, written out in full:
Constructive heuristic: the primal bound
Constructive covering heuristic, with the criterion "cost per newly covered city".
- Step 1. Ratios \(1/4\) for Atlanta, \(1/3\) for Chicago, New York and San Francisco, \(1/2\) for the others: Atlanta is chosen, covering Atlanta, Chicago, Houston and New York.
- Step 2. Denver, Los Angeles, San Francisco and Seattle remain; ratios \(1/2\), \(1/3\), \(1/3\), \(1/2\): Los Angeles is chosen, covering Denver, Los Angeles and San Francisco.
- Step 3. Seattle remains; ratio \(1/1\) for San Francisco and for Seattle: San Francisco is chosen.
Three hubs, so \(\mathit{UB} = 3\).
LP relaxation and dual: the dual bound
Relaxing to \(y_j \ge 0\), with \(\pi_i \ge 0\) for every covering constraint:
Dual constructive heuristic on the cities, in order: \(\pi_i\) is raised until the first opposing dual constraint becomes tight, and the residuals are updated.
- Atlanta is covered by four hubs, all with residual \(1\): \(\bar \pi_1 = 1\), and the residuals of Atlanta, Chicago, Houston and New York drop to zero.
- Chicago, Houston and New York have all their hubs at residual zero: \(\bar\pi = 0\).
- Denver is covered by Denver and Los Angeles, both with residual \(1\): \(\bar \pi_3 = 1\).
- Los Angeles and San Francisco have one hub at residual zero: \(\bar\pi = 0\).
- Seattle is covered by San Francisco and Seattle, both with residual \(1\): \(\bar \pi_8 = 1\).
\(\mathit{LB} = 3\).
What this bound proves, in words
The three cities that received \(\pi_i = 1\) — Atlanta, Denver, Seattle — are pairwise "far apart": no city can serve as a hub for two of them. Hence at least three hubs are needed. The dual has formalised an argument one could tell without writing it: that is the point of the constructive heuristic recipe.
| \(UB\) (constructive heuristic) | \(LB\) (dual by hand) | \(z(\mathit{LP})\) | \(z(\mathit{MILP})\) | heuristic gap |
|---|---|---|---|---|
| 3 | 3 | 3 | 3 | \(0.0\%\) |
The optimum is \(3\) hubs in Atlanta, Los Angeles and San Francisco — the same solution as the constructive heuristic. The two hand-built bounds coincide: optimality is proved without the solver.
Code
The complete script is
python/ex04_hub.py;
the notebook is
notebooks/ex04_hub.ipynb.
Show the complete script — python/ex04_hub.py (107 lines)
"""EX 4 -- Hub-and-spoke: the minimum number of hubs covering eight cities (family 8).
A pure set covering with all costs equal to 1: the number of hubs is minimised.
The dual is the fractional packing of the customers, and the dual constructive heuristic on the
cities finds here a bound that coincides with the optimum.
"""
import gurobipy as gp
import pandas as pd
from gurobipy import GRB
from euristiche import euristica_copertura
from mip import (ammissibile, due_rilassamenti, frazione, nuovo_modello, registra_bound,
risolvi, valuta)
from stile import intestazione, plt, salva_dati, salva_figura
from esteso import salva_modello
R = range
# ---------- 1. MODEL AND INSTANCE ----------
intestazione("EX 4. Hub-and-spoke: the fewest hubs within 1000 miles of every city")
CITTA = ["Atlanta", "Chicago", "Denver", "Houston", "Los Angeles", "New York",
"San Francisco", "Seattle"]
copre = [[0, 1, 3, 5], [0, 1, 5], [2, 4], [0, 3], [2, 4, 6], [0, 1, 5], [4, 6, 7], [6, 7]]
n = len(CITTA)
salva_dati(pd.DataFrame([{"city": CITTA[i], "covered_by": ", ".join(CITTA[j] for j in copre[i])}
for i in R(n)]), "ex04_copertura")
def modello(copre):
n = len(copre)
m = nuovo_modello("hub_spoke")
y = m.addVars(n, vtype=GRB.BINARY, name="y")
m.setObjective(y.sum(), GRB.MINIMIZE)
m.addConstrs((gp.quicksum(y[j] for j in copre[i]) >= 1 for i in R(n)), name="cover")
return m, y
def duale(copre):
"""max sum_i u_i; sum_{i : j covers i} u_i <= 1 for every j; u >= 0."""
n = len(copre)
d = nuovo_modello("dual_hub_spoke")
u = d.addVars(n, name="pi") # price of city i
d.setObjective(u.sum(), GRB.MAXIMIZE)
d.addConstrs((gp.quicksum(u[i] for i in R(n) if j in copre[i]) <= 1 for j in R(n)),
name="rc")
return d
m, y = modello(copre)
salva_modello(m, "ex04_primale")
# ---------- 2. CONSTRUCTIVE HEURISTIC (UPPER BOUND) ----------
e = euristica_copertura([1] * n, copre)
e.traccia.stampa()
ub = e.valore
scelti = [j for j in R(n) if e.y[j]]
assert ammissibile(m, {f"y[{j}]": e.y[j] for j in R(n)})
print(" Heuristic solution: hubs in " + ", ".join(CITTA[j] for j in scelti)
+ f" ub = {frazione(ub)}")
# ---------- 3. LP RELAXATION AND DUAL (LOWER BOUND) ----------
d = duale(copre)
salva_modello(d, "ex04_duale")
residuo = [1.0] * n
mano = {}
for i in R(n):
incremento = min(residuo[j] for j in copre[i])
mano[f"pi[{i}]"] = incremento
for j in copre[i]:
residuo[j] -= incremento
print(f" City {i + 1} ({CITTA[i]}): residuals of the hubs covering it "
+ ", ".join(f"{CITTA[j]} = {frazione(residuo[j] + incremento)}" for j in copre[i])
+ f"; the smallest is {frazione(incremento)}, so u_{i + 1} = {frazione(incremento)}")
lb, viol = valuta(d, mano)
assert viol <= 1e-9, viol
print(f" Dual by hand (constructive heuristic on the cities): lb = {frazione(lb)}")
zlp, zlpr, pi = due_rilassamenti(m, d)
# ---------- 4. MILP OPTIMUM AND BOUND TABLE ----------
z = risolvi(m)
ott = [j for j in R(n) if y[j].X > 0.5]
print(f" Optimal solution: {len(ott)} hubs in " + ", ".join(CITTA[j] for j in ott))
for i in R(n):
assert [CITTA[j] for j in copre[i] if j in ott], CITTA[i]
print(" Every city is covered by at least one chosen hub: checked for all eight.")
riga = registra_bound("EX 4 hub-and-spoke", ub, lb, zlp, zlpr, z)
salva_dati(pd.DataFrame([riga]), "ex04_bound")
assert lb <= zlp <= z <= ub + 1e-9
if abs(lb - z) < 1e-9:
print(" Here the hand-built dual coincides with the integer optimum: the bound closes")
print(" the problem without the solver (three pairwise 'distant' cities are enough to")
print(" prove that two hubs cannot suffice).")

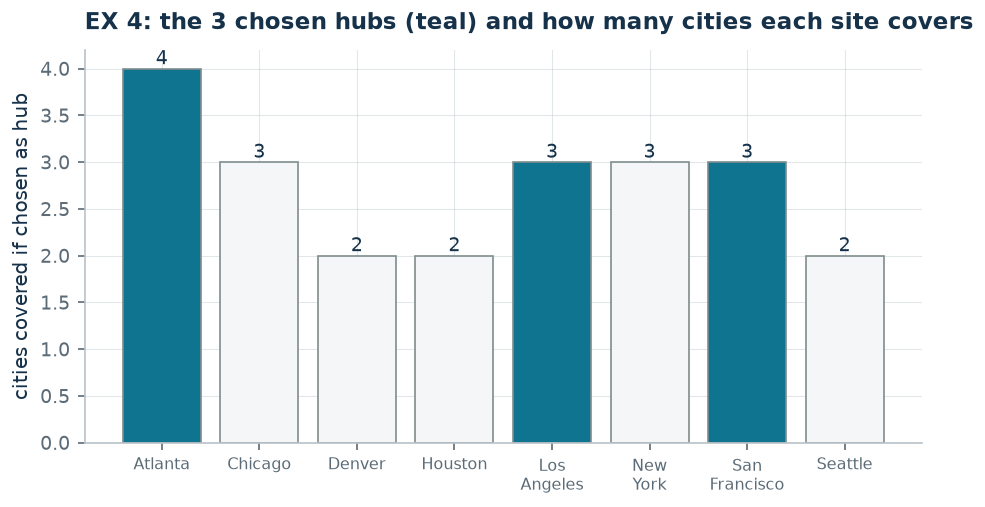

# ---------- 5. FIGURE ----------
fig, ax = plt.subplots(figsize=(7.2, 3.4))
altezza = [len([i for i in R(n) if j in copre[i]]) for j in R(n)]
colori = ["#0E7490" if j in ott else "#F4F6F7" for j in R(n)]
ax.bar(R(n), altezza, color=colori, edgecolor="#7F8C8D", lw=0.8)
for j in R(n):
ax.annotate(str(altezza[j]), (j, altezza[j]), ha="center", va="bottom", fontsize=9,
color="#16324A")
ax.set_xticks(R(n))
ax.set_xticklabels([c.replace(" ", "\n") for c in CITTA], fontsize=7.5)
ax.set_ylabel("cities covered if chosen as hub")
ax.set_title(f"EX 4: the {len(ott)} chosen hubs (teal) and how many cities each site covers")
salva_figura(fig, "ex04_ottimo")
print("Done.")
