EX 8 — Seminars
Class: BIP · Links: exact cardinality, non-adjacency · Script: python/ex08_seminars.py
Difficulty: ★★☆☆☆ · Time: 30–45 min
One of the fifteen numerical models, of the assignment and scheduling family.
EX 8
A student must attend exactly two sessions of a summer school. There are three seminars, each offered in four time slots; every seminar is attended at most once and two sessions cannot occupy the same slot. The preference score of each session is:
| 9–10 | 10–11 | 11–12 | 12–13 | |
|---|---|---|---|---|
| Seminar 1 | 8 | 6 | 5 | 3 |
| Seminar 2 | 7 | 9 | 4 | 6 |
| Seminar 3 | 5 | 7 | 8 | 9 |
The student never wants two consecutive hours of class. The total preference is maximised.
Model
With \(x_{sk} = 1\) if seminar \(s\) is attended in slot \(k\) (\(12\) binaries):
\[
\begin{array}{rrrrrrrrrrrrr c l}
\max & 8x_{11} & +6x_{12} & +5x_{13} & +3x_{14} & +7x_{21} & +9x_{22} & +4x_{23} & +6x_{24} & +5x_{31} & +7x_{32} & +8x_{33} & +9x_{34} & & \\
\text{subject to} & x_{11} & & & & +x_{21} & & & & +x_{31} & & & & \le & 1\\
& & x_{12} & & & & +x_{22} & & & & +x_{32} & & & \le & 1\\
& & & x_{13} & & & & +x_{23} & & & & +x_{33} & & \le & 1\\
& & & & x_{14} & & & & +x_{24} & & & & +x_{34} & \le & 1\\
& x_{11} & +x_{12} & +x_{13} & +x_{14} & & & & & & & & & \le & 1\\
& & & & & x_{21} & +x_{22} & +x_{23} & +x_{24} & & & & & \le & 1\\
& & & & & & & & & x_{31} & +x_{32} & +x_{33} & +x_{34} & \le & 1\\
& x_{11} & +x_{12} & +x_{13} & +x_{14} & +x_{21} & +x_{22} & +x_{23} & +x_{24} & +x_{31} & +x_{32} & +x_{33} & +x_{34} & = & 2\\
& x_{11} & +x_{12} & & & +x_{21} & +x_{22} & & & +x_{31} & +x_{32} & & & \le & 1\\
& & x_{12} & +x_{13} & & & +x_{22} & +x_{23} & & & +x_{32} & +x_{33} & & \le & 1\\
& & & x_{13} & +x_{14} & & & +x_{23} & +x_{24} & & & +x_{33} & +x_{34} & \le & 1\\
& x_{11}, & x_{12}, & x_{13}, & x_{14}, & x_{21}, & x_{22}, & x_{23}, & x_{24}, & x_{31}, & x_{32}, & x_{33}, & x_{34} & \in & \{0, 1\}
\end{array}
\]
with \(q = 2\): four slot constraints, three seminar constraints, one exact cardinality constraint and three non-adjacency constraints.
The model of the instance, written out in full:
Constructive heuristic: the primal bound
It is a maximisation, so the value of a feasible solution is a lower bound. Constructive heuristic: take the feasible session with the highest score, then the best compatible one.
- Step 1: seminar 3 in slot 4 (score \(9\)).
- Step 2: among the sessions that do not use seminar 3, do not occupy slot 4 and are not adjacent to it, the best is seminar 2 in slot 2 (score \(9\)).
\(\mathit{LB} = 18\).
LP relaxation and dual: the dual bound
With \(\alpha_k \ge 0\) for the slots, \(\beta_s \ge 0\) for the seminars, \(\gamma\) free for the exact cardinality and \(\delta_k \ge 0\) for non-adjacency:
\[
\begin{array}{rrrrrrrrrrrr c l}
\min & \alpha_1 & +\alpha_2 & +\alpha_3 & +\alpha_4 & +\beta_1 & +\beta_2 & +\beta_3 & +2\gamma & +\delta_1 & +\delta_2 & +\delta_3 & & \\
\text{subject to} & \alpha_1 & & & & +\beta_1 & & & +\gamma & +\delta_1 & & & \ge & 8\\
& & \alpha_2 & & & +\beta_1 & & & +\gamma & +\delta_1 & +\delta_2 & & \ge & 6\\
& & & \alpha_3 & & +\beta_1 & & & +\gamma & & +\delta_2 & +\delta_3 & \ge & 5\\
& & & & \alpha_4 & +\beta_1 & & & +\gamma & & & +\delta_3 & \ge & 3\\
& \alpha_1 & & & & & +\beta_2 & & +\gamma & +\delta_1 & & & \ge & 7\\
& & \alpha_2 & & & & +\beta_2 & & +\gamma & +\delta_1 & +\delta_2 & & \ge & 9\\
& & & \alpha_3 & & & +\beta_2 & & +\gamma & & +\delta_2 & +\delta_3 & \ge & 4\\
& & & & \alpha_4 & & +\beta_2 & & +\gamma & & & +\delta_3 & \ge & 6\\
& \alpha_1 & & & & & & +\beta_3 & +\gamma & +\delta_1 & & & \ge & 5\\
& & \alpha_2 & & & & & +\beta_3 & +\gamma & +\delta_1 & +\delta_2 & & \ge & 7\\
& & & \alpha_3 & & & & +\beta_3 & +\gamma & & +\delta_2 & +\delta_3 & \ge & 8\\
& & & & \alpha_4 & & & +\beta_3 & +\gamma & & & +\delta_3 & \ge & 9\\
& \alpha_1, & \alpha_2, & \alpha_3, & \alpha_4 & & & & & & & & \ge & 0\\
& & & & & \beta_1, & \beta_2, & \beta_3 & & & & & \ge & 0\\
& & & & & & & & \gamma & & & & \gtreqless & 0\\
& & & & & & & & & \delta_1, & \delta_2, & \delta_3 & \ge & 0
\end{array}
\]
The shortest recipe: everything at zero except \(\bar\gamma = \max_{s,k} p_{sk} = 9\). Every dual constraint becomes \(9 \ge p_{sk}\), true by construction, and the value is \(q\,\bar\gamma = 18\). It reads: "two sessions are attended, and none is worth more than the best one".
| Dual recipe | \(UB\) |
|---|---|
| everything at zero except \(\gamma = \max_{s,k} p_{sk}\) | \(18\) |
| \(\gamma = 0\), \(\alpha_k = \max_s p_{sk}\) | \(34\) |
The first is optimal for the relaxation; the second, apparently more natural, is almost twice as large. The recipe matters.
| \(LB\) (constructive heuristic) | \(z(\mathit{MILP})\) | \(z(\mathit{LP})\) | \(UB\) (dual by hand) | heuristic gap |
|---|---|---|---|---|
| 18 | 18 | 18 | 18 | \(0.0\%\) |
Here the two hand-built bounds close the problem: \(z(\mathit{MILP}) = 18\) is proved without the solver.
Code
The complete script is
python/ex08_seminars.py;
the notebook is
notebooks/ex08_seminars.ipynb.
Show the complete script — python/ex08_seminars.py (137 lines)
"""EX 8 -- Seminars: exactly two sessions, never two consecutive hours (family 7).
A set packing on two dimensions (slot and seminar) with an exact cardinality
constraint and non-adjacency constraints between consecutive slots. The dual has
a free variable for the equality, and its simplest recipe --- "two sessions are
worth at most twice the best score" --- is in fact optimal for the relaxation.
"""
import gurobipy as gp
import pandas as pd
from gurobipy import GRB
from mip import (ammissibile, due_rilassamenti, frazione, nuovo_modello, registra_bound,
risolvi, valuta)
from stile import intestazione, plt, salva_dati, salva_figura
from esteso import salva_modello
R = range
# ---------- 1. MODEL AND INSTANCE ----------
intestazione("EX 8. Seminars: exactly two sessions, never two consecutive hours")
p = [[8, 6, 5, 3], [7, 9, 4, 6], [5, 7, 8, 9]]
ns, nk, q = 3, 4, 2
SLOT = ["9--10", "10--11", "11--12", "12--13"]
salva_dati(pd.DataFrame([{"seminar": s + 1, "slot": k + 1, "time": SLOT[k], "p": p[s][k]}
for s in R(ns) for k in R(nk)]), "ex08_preferenze")
def modello(p, q):
ns, nk = len(p), len(p[0])
m = nuovo_modello("seminars")
x = m.addVars(ns, nk, vtype=GRB.BINARY, name="x")
m.setObjective(gp.quicksum(p[s][k] * x[s, k] for s in R(ns) for k in R(nk)), GRB.MAXIMIZE)
m.addConstrs((x.sum("*", k) <= 1 for k in R(nk)), name="slot")
m.addConstrs((x.sum(s, "*") <= 1 for s in R(ns)), name="seminar")
m.addConstr(gp.quicksum(x[s, k] for s in R(ns) for k in R(nk)) == q, name="how_many")
m.addConstrs((gp.quicksum(x[s, k] + x[s, k + 1] for s in R(ns)) <= 1 for k in R(nk - 1)),
name="consecutive")
return m, x
def duale(p, q):
"""min sum_k alpha_k + sum_s beta_s + q gamma + sum_k delta_k
s.t. alpha_k + beta_s + gamma + sum_{k' : k in {k', k'+1}} delta_k' >= p_sk
alpha, beta, delta >= 0; gamma free."""
ns, nk = len(p), len(p[0])
d = nuovo_modello("dual_seminars")
alpha = d.addVars(nk, name="alpha")
beta = d.addVars(ns, name="beta")
gamma = d.addVar(lb=-GRB.INFINITY, name="gamma")
delta = d.addVars(nk - 1, name="delta")
d.setObjective(alpha.sum() + beta.sum() + q * gamma + delta.sum(), GRB.MINIMIZE)
for s in R(ns):
for k in R(nk):
vicini = [kk for kk in R(nk - 1) if k in (kk, kk + 1)]
d.addConstr(alpha[k] + beta[s] + gamma + gp.quicksum(delta[kk] for kk in vicini)
>= p[s][k], name=f"rc{s}{k}")
return d
m, x = modello(p, q)
salva_modello(m, "ex08_primale")
# ---------- 2. CONSTRUCTIVE HEURISTIC (LOWER BOUND: IT IS A MAXIMISATION) ----------
def ammesse(scelte):
for s in R(ns):
for k in R(nk):
if any(ss == s or kk == k or abs(kk - k) <= 1 for ss, kk in scelte):
continue
yield p[s][k], s, k
scelte = []
for passo in R(q):
candidate = sorted(ammesse(scelte), reverse=True)
if not candidate:
break
val, s, k = candidate[0]
scelte.append((s, k))
print(f" Step {passo + 1}: the feasible session with the highest score is seminar "
f"{s + 1} in slot {k + 1} ({SLOT[k]}), score {val}")
lb = sum(p[s][k] for s, k in scelte)
sol_eur = {f"x[{s},{k}]": 1 for s, k in scelte}
assert ammissibile(m, sol_eur), "the constructive heuristic must produce a feasible solution"
print(" Heuristic solution: " + ", ".join(f"seminar {s + 1} in slot {k + 1}" for s, k in scelte)
+ f" lb = {frazione(lb)}")
# ---------- 3. LP RELAXATION AND DUAL (UPPER BOUND) ----------
d = duale(p, q)
salva_modello(d, "ex08_duale")
pmax = max(p[s][k] for s in R(ns) for k in R(nk))
mano = {"gamma": pmax}
ub, viol = valuta(d, mano)
assert viol <= 1e-9, viol
print(f" Dual by hand: alpha = beta = delta = 0 and gamma = max_sk p_sk = {pmax}")
print(f" -> ub = q gamma = {q} * {pmax} = {frazione(ub)}")
print(" Meaning: 'two sessions are attended, and none is worth more than the best one'.")
mano2 = {f"alpha[{k}]": max(p[s][k] for s in R(ns)) for k in R(nk)}
ub2, viol2 = valuta(d, mano2)
assert viol2 <= 1e-9
print(f" Alternative recipe (gamma = 0, alpha_k = max_s p_sk): ub = {frazione(ub2)}, weaker")
zlp, zlpr, pi = due_rilassamenti(m, d)
# ---------- 4. MILP OPTIMUM AND BOUND TABLE ----------
z = risolvi(m)
ott = [(s, k) for s in R(ns) for k in R(nk) if x[s, k].X > 0.5]
print(" Optimal solution: " + ", ".join(f"seminar {s + 1} in slot {k + 1} ({SLOT[k]}, "
f"score {p[s][k]})" for s, k in sorted(ott, key=lambda t: t[1])))
riga = registra_bound("EX 8 seminars", ub, lb, zlp, zlpr, z, senso="max")
salva_dati(pd.DataFrame([riga]), "ex08_bound")
assert lb <= z <= zlp + 1e-9 <= ub + 1e-9
if abs(ub - zlp) < 1e-9:
print(" The hand-built dual coincides with z(LP): the recipe is optimal for the")
print(" relaxation, and what gap remains belongs entirely to integrality.")

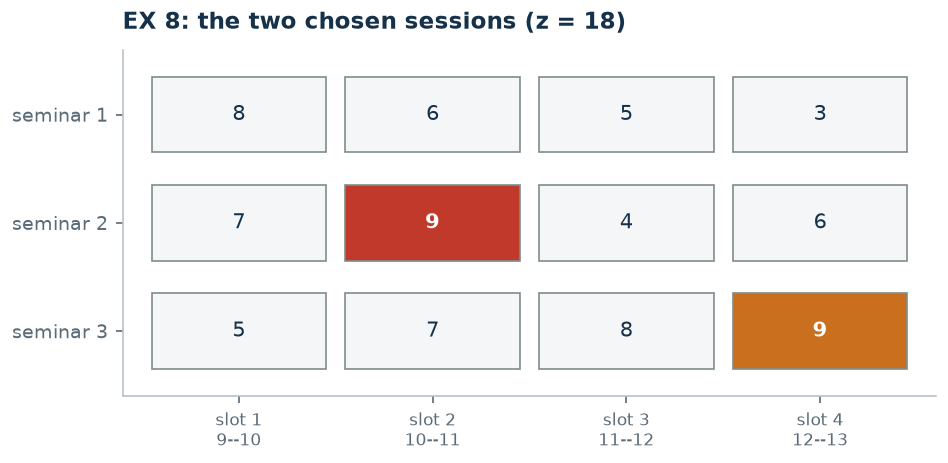

# ---------- 5. FIGURE ----------
fig, ax = plt.subplots(figsize=(7.0, 3.0))
colori = ["#0E7490", "#C0392B", "#CA6F1E"]
for s in R(ns):
for k in R(nk):
scelto = (s, k) in ott
ax.add_patch(plt.Rectangle((k - 0.45, s - 0.35), 0.9, 0.7,
facecolor=colori[s] if scelto else "#F4F6F7",
edgecolor="#7F8C8D", lw=0.8))
ax.annotate(str(p[s][k]), (k, s), ha="center", va="center", fontsize=10,
color="white" if scelto else "#16324A",
fontweight="bold" if scelto else "normal")
ax.set_xlim(-0.6, nk - 0.4)
ax.set_ylim(-0.6, ns - 0.4)
ax.set_xticks(R(nk))
ax.set_xticklabels([f"slot {k + 1}\n{SLOT[k]}" for k in R(nk)], fontsize=8)
ax.set_yticks(R(ns))
ax.set_yticklabels([f"seminar {s + 1}" for s in R(ns)])
ax.set_title(f"EX 8: the two chosen sessions (z = {frazione(z)})")
ax.invert_yaxis()
ax.grid(False)
salva_figura(fig, "ex08_ottimo")
print("Done.")
